COR 60
Design Overview

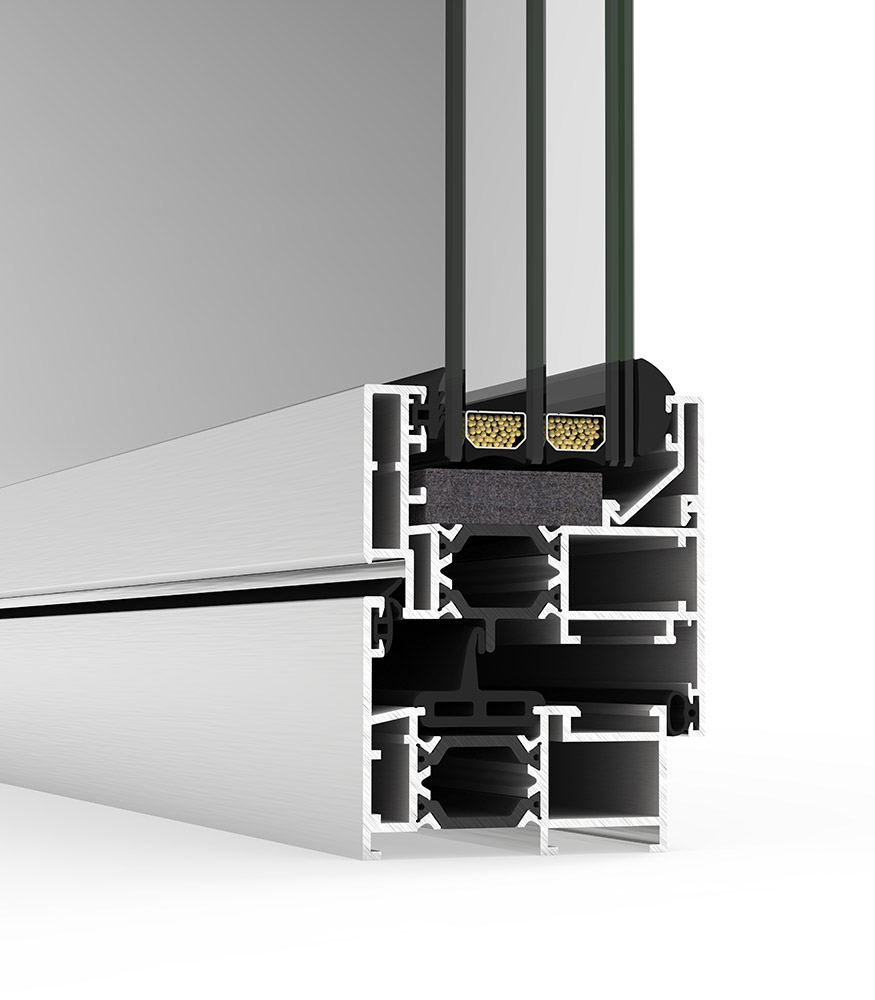

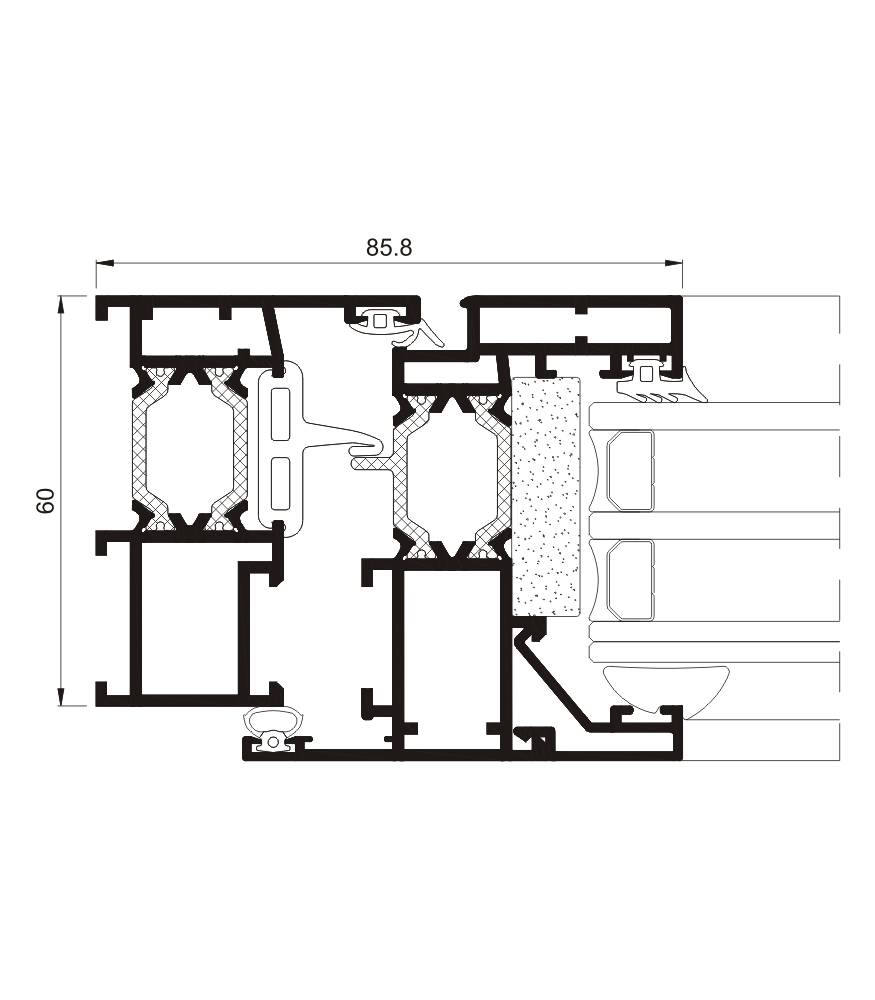

Hinged system with a frame depth of 2.36 inches (60 mm), featuring 0.94-inch polyamide strips (24 mm), which provides excellent thermal and acoustic comfort, with noise reduction of up to 48 dB.
Options Available
Technical Specifications
| Glazing | Maximum: 1.81 inches (46 mm) Minimum: 0.20 inches (5 mm) |
|---|---|
| Opening possibilities | Inward opening Side hung Tilt & turn Parallel Sliding Bottom-hung |
| Outward opening Side-hung Top-hung Pivoting (horizontal or vertical axis) |
|
| Sightlines | Frame: 2.36 in (60 mm) Sash: 2.68 in (68 mm) |
| Profile thickness | Window: 0.063 in (1.6 mm) |
Performance
| Thermal Transmittance (Uw) | As low as 1.0 W/m²K (equivalent to 0.176 BTU/hr·ft²·°F) Maximum weight and dimensions vary depending on opening type – please consult. |
|---|---|
| Acoustic Insulation | Sound reduction index (Rw) up to 48 dB |
| Air Permeability | According to EN 12207: Class 4 (highest performance) |
| Water Tightness | According to EN 12208: Class E1350 (resistant to 1350 Pa – approx. 80 mph wind-driven rain) |
| Wind Load Resistance | According to EN 12210: Class C5 (highest structural class) |
| Test Reference Dimensions | 47.2 x 45.7 inches (1200 x 1160 mm) – 2 sashes |
