Cortizo 70 CE

The Cortizo 70 CE is a high-performance window model known for its thermal and acoustic insulation properties. This model is known for its versatility, making it a popular choice for various building projects.

Key Features

Thermal Insulation: The window provides excellent thermal insulation, helping to maintain indoor temperature and improve energy efficiency.
Acoustic Insulation: Designed to reduce noise infiltration, making it suitable for both residential and commercial applications in noisy environments.
Air and Water Tightness: The window offers high levels of air and water tightness, ensuring protection against weather elements and enhancing durability.
Security: Enhanced security features to prevent unauthorized access, contributing to overall safety.
Aesthetics: Modern design with various customization options in terms of colors and finishes to match different architectural styles.
Durability: Made from high-quality materials that ensure longevity and low maintenance requirements.
Ease of Operation: Smooth and easy operation due to its well-designed hardware and fittings.

Technical Characteristics

Frame depth:	3.03 inches
Sash weight:	Up to 396.8 lbs
Minimum visible aluminium face height:	3.66 inches
Minimum visible aluminium face width at the central vertical column (adjoining profile):	4.80 inches
Glazing type:	Double - Triple
Maximum glazing thickness:	From 0.94 inches up to 2.83 inches
Mechanism:	Euro-groove, Euro-nut
Sealing method:	Perimetrical at 3 levels with EPDM & foam EPDM gaskets
Minimum threshold height:	0.51 inches

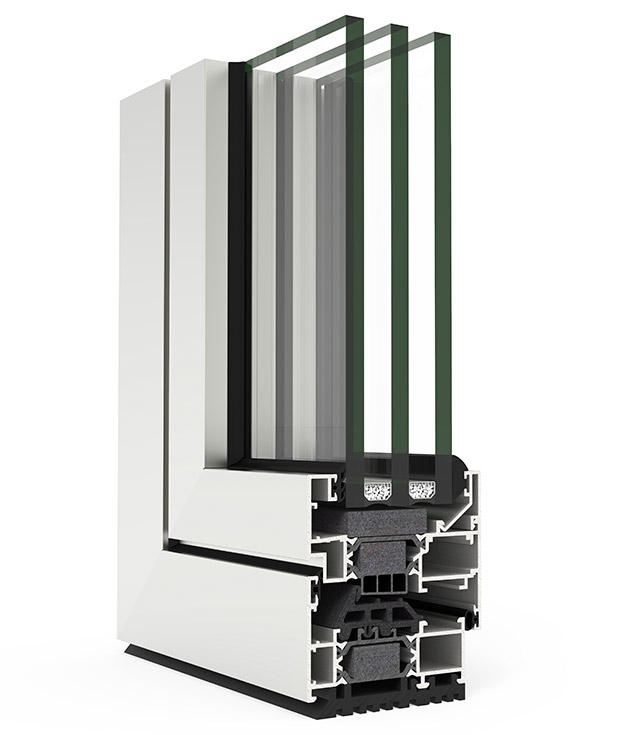

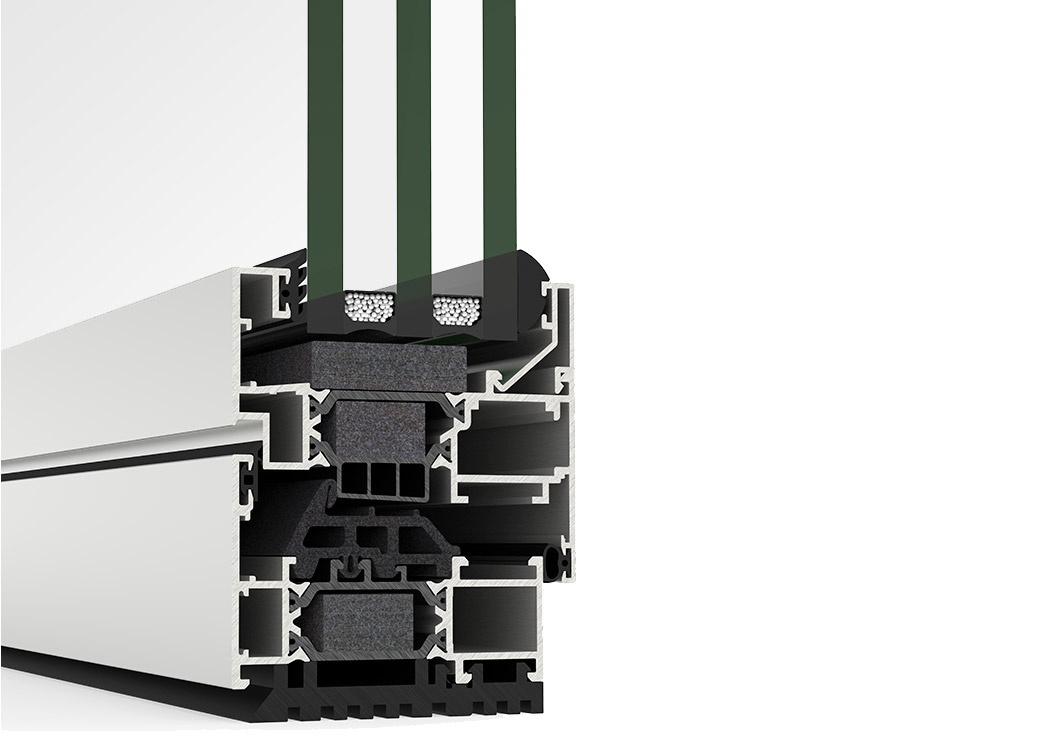

Type of thermal insulation:	Polyamides 1.57 inches width, ALUMIL Energy bar, Insulation foam

Performance

UW:	from 0.15 up to 0.25 BTU/hr·ft²·°F
UF:	from 0.15 to 0.43 BTU/hr·ft²·°F
Water tightness:	Class E1350
Air permeability:	Class 4
Wind load resistance:	C5/B5
Sound reduction:	42 dB
Burglar resistance:	RC2/RC3
