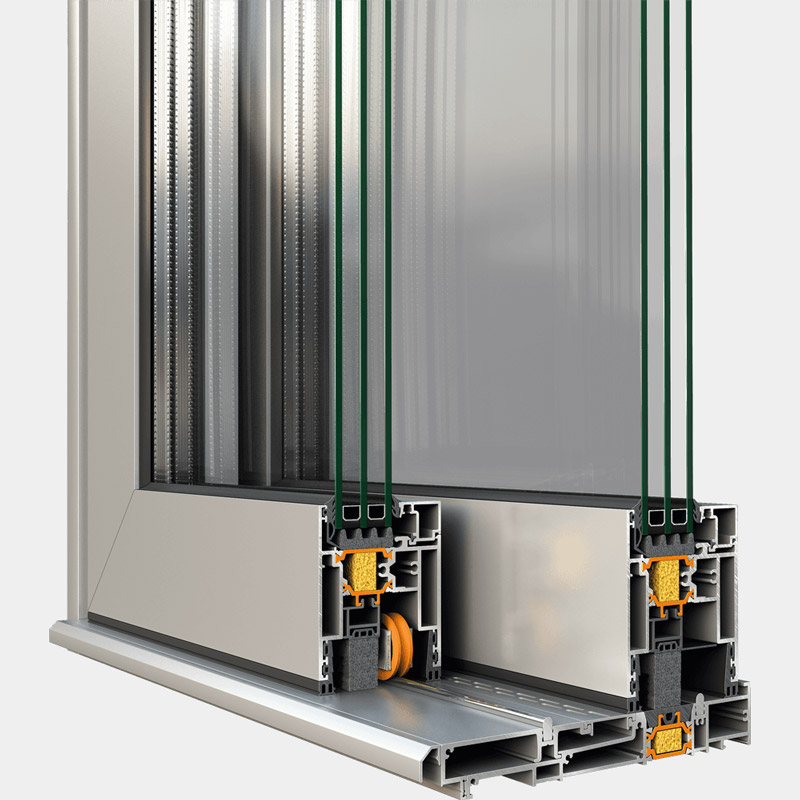

Lift and Slide Door

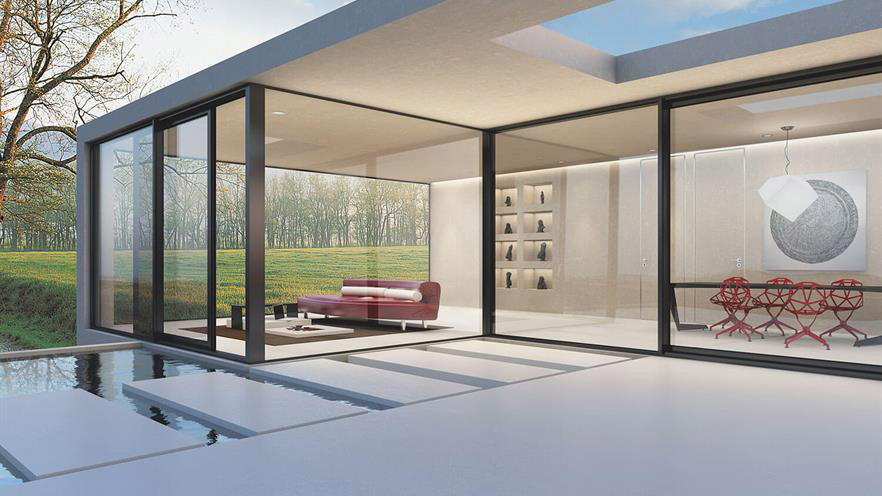

The lift and slide aluminium door systems are engineered for smooth and effortless operation, allowing heavy glass panels to be easily lifted and slid open or closed. And are an excellent choice for creating large, uninterrupted openings that seamlessly connect indoor and outdoor spaces.

Advantages

  • Maximum ease of use and high functionality, optionally combined with automatic motion
  • Maximum ease of use and high functionality, optionally combined with automatic motion
  • High energy savings thanks to the exceptional energy efficiency
  • High security level
  • Exceptional sound insulation
  • Ease of access
  • Wide variety of typologies and solutions
  • Exceptional quality with certified performances
  • Increased static loads and functionality in case of severe weather conditions

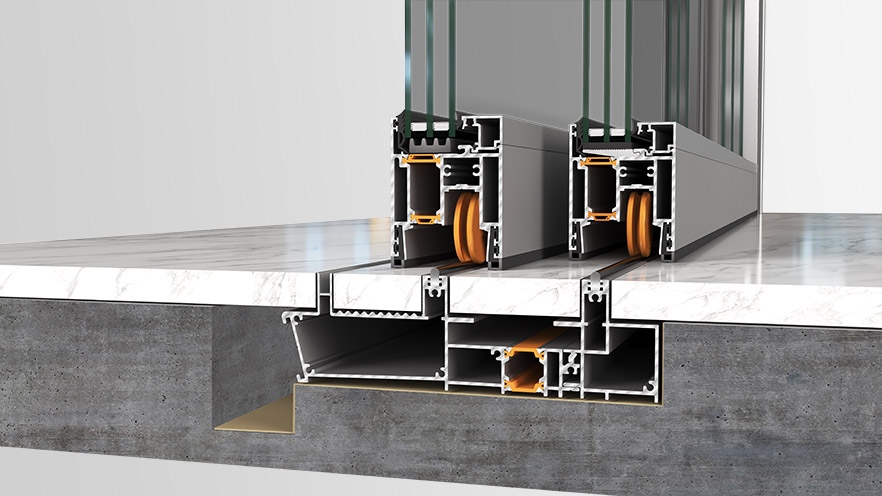

  • Available solution for totally concealed bottom frame installation covered with the floor finish (version SUPREME S700 Eclipse)

Certificates:

  • ATG
  • Cradle to Cradle Certified® is the global standard for products that are safe, circular, and responsibly made.
  • Aluminum TUV Austria OK Recycled

Generic:

  • WINDOW TYPE:Lift & Sliding
  • THERMAL INSULATION:Yes
  • EXTERIOR SHAPE:Flat

Technical Data

Sash Depth 2.76 inches
Minimum visible aluminium face height 3.58 inches
Minimum visible aluminium face width at the central vertical column (interlocking profile) 1.85 inches
glazing type Double - triple
Maximum glazing thickness From 0.87 to 1.97 inches
Mechanism Lift & slide mechanism
Sealing method Perimetrical with epdm gaskets & tri-fin brushes
Minimum threshold height 0.94 inches
Type of thermal insulation Polyamides, alumil energy bar, insulation foam, thermoplastic

Performance

UW 0.194 Btu/hr·ft²·°F
Water tightness CLASS E900
Air permeability CLASS 4
Wind load resistance C4/B4
Sound reduction 41 dB
Burglar resistance RC2

Characteristics

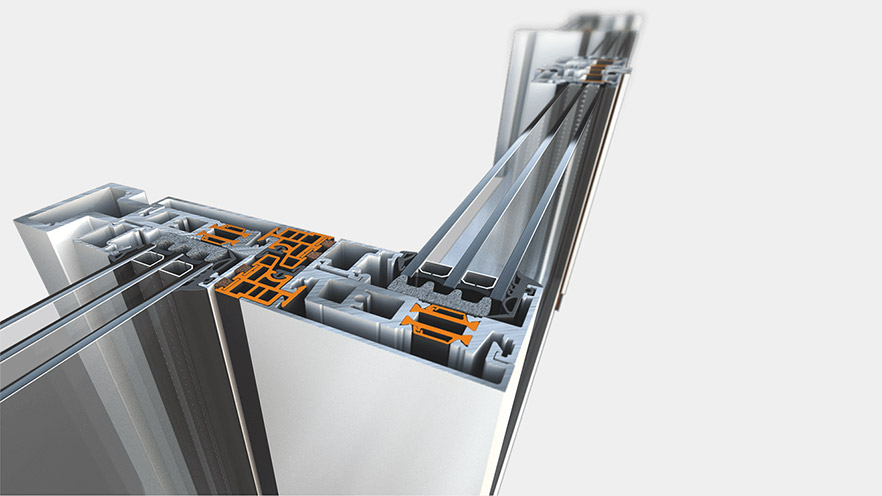

Types of typology Horizontal sliding sashes, Multiple tracks, Meeting stile, Sliding into the wall cavity, Corner typologies, Combinations with flyscreen and shutter, Combinations with fixed lights
Sash weight Up to 1322.77 lbs
