Millennium Plus 70 Door

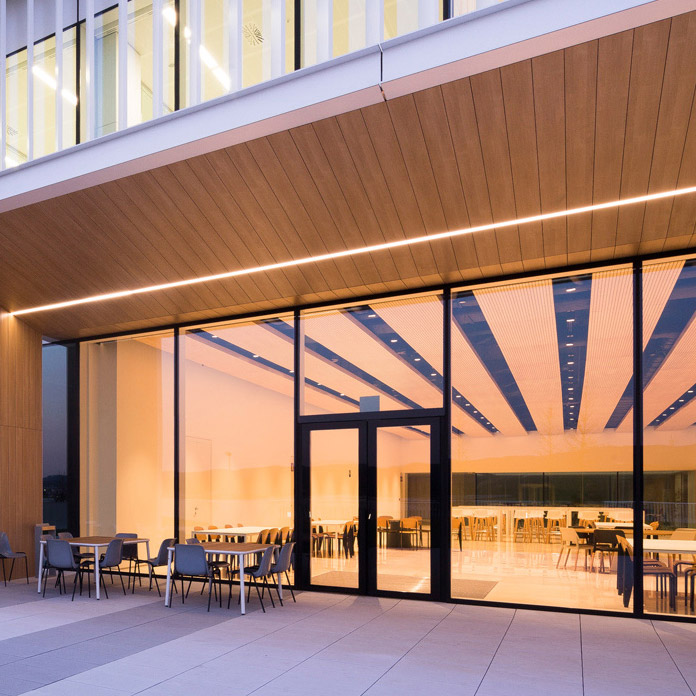

The Cortizo Millennium Plus 70 Door is a high-performance entrance solution designed for commercial and high-traffic areas.

Features

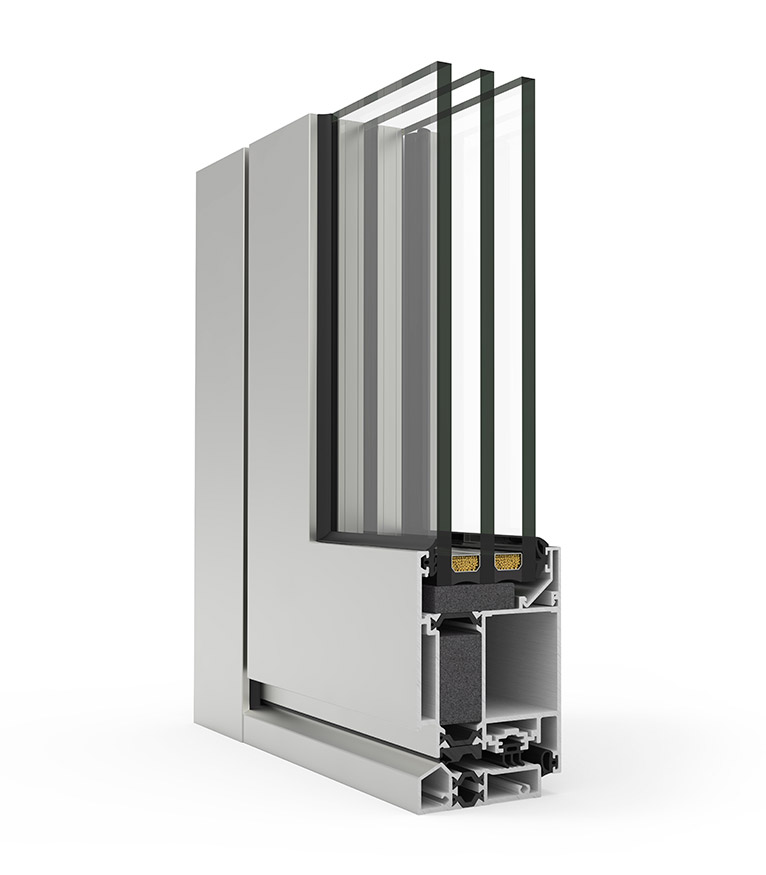

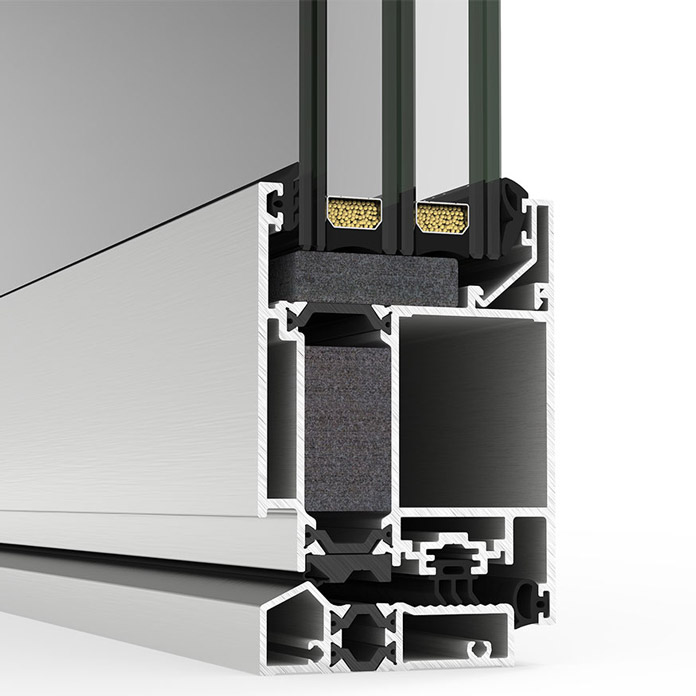

  • Coplanar door entry system with straight lines and frame depth of 70 mm
  • It allows for the set up of an emergency exit with anti-panic devices according to EN 179 & EN 1125 regulations
  • Resistance to repeated openings and closings (EN 1191:2000) : 1,000,000 cycles
  • Maximum glazing: 54 mm
  • Possibility of hidden hinges

Technical Data

Maximum glazing thickness 2.13 inches
Opening possibilities Open In: Side hung 1 or 2 sashes
Open Out: Side hung 1 or 2 sashes
Automatic opening: Internal and external hinged single sash
Sections Frame – 2.76 inches / Sash – 2.76 inches
Profile thickness Door 0.08 inches
Polyamide strip length 0.94 inches
Maximum dimensions/sash Width (L) = 70.87 inches
Height (H) = 118.11 inches
Door Width (L) = 59.06 inches
Height (H) = 118.11 inches
Hidden hinges door
Maximum weight/sash 485 lbs
Please consult regarding maximum weight and dimensions according to types
Finishes Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised

Tests

Transmittance Uw from 0.16 (BTU/hr·ft²·°F)
Please consult typology, dimensions, and glazing
Maximum acoustic insulation Rw = 38 dB
Air permeability (EN 12207) CLASS 4
Water tightness (EN 12208) CLASS 6A
Wind resistance (EN 12210) CLASS C4
Door test reference 3.94 x 7.55 ft, 1 sash
Resistance to mild impact (EN 13049) CLASS 5 (max)
Test on door reference 5.91 x 7.22 ft, 2 sashes. Laminated glass 3+3
Resistance to repeated openings and closings (EN 1191) 1,000,000 cycles
Door test reference 6.89 x 7.22 ft, 2 sashes.
