Reynaers Masterline 10
The Reynaers MasterLine 10 system is crafted for the creation of windows and doors that offer exceptional performance without compromise.
Designed to meet both current and future architectural demands, this system provides outstanding thermal efficiency, enhanced safety, maximum natural light entry, and exceptional performance even in the most extreme weather conditions.
Additionally, MasterLine 10 is certified by the Passive House Institute, ensuring it meets rigorous standards for energy efficiency.
Advantages
Certifications

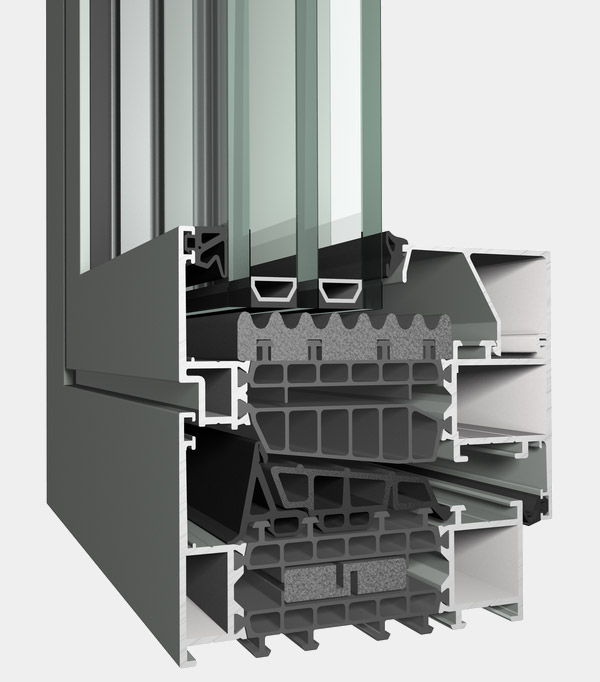

Technical Characteristics
| Depth | 4.21 inches |
|---|---|
| Visible height | 3.82 inches |
| Central node | 5.47 inches |
| Maximum sash dimensions | Width (L) 47.24 inches / Height (H) 110.24 inches |
| Maximum sash weight | 440.92 lbs |
| Maximum glazing thickness | 3.46 inches |
| Thermal performance | UW ≥ 0.137 BTU/hr·ft²·°F |
| Acoustic performance | 49 dB |
ESA classifications
| Air resistance | Class 4 (600 Pa) |
|---|---|
| Water resistance | E900 class (900 Pa) |
| Wind resistance | Class C5 (2000 Pa) |
